The job

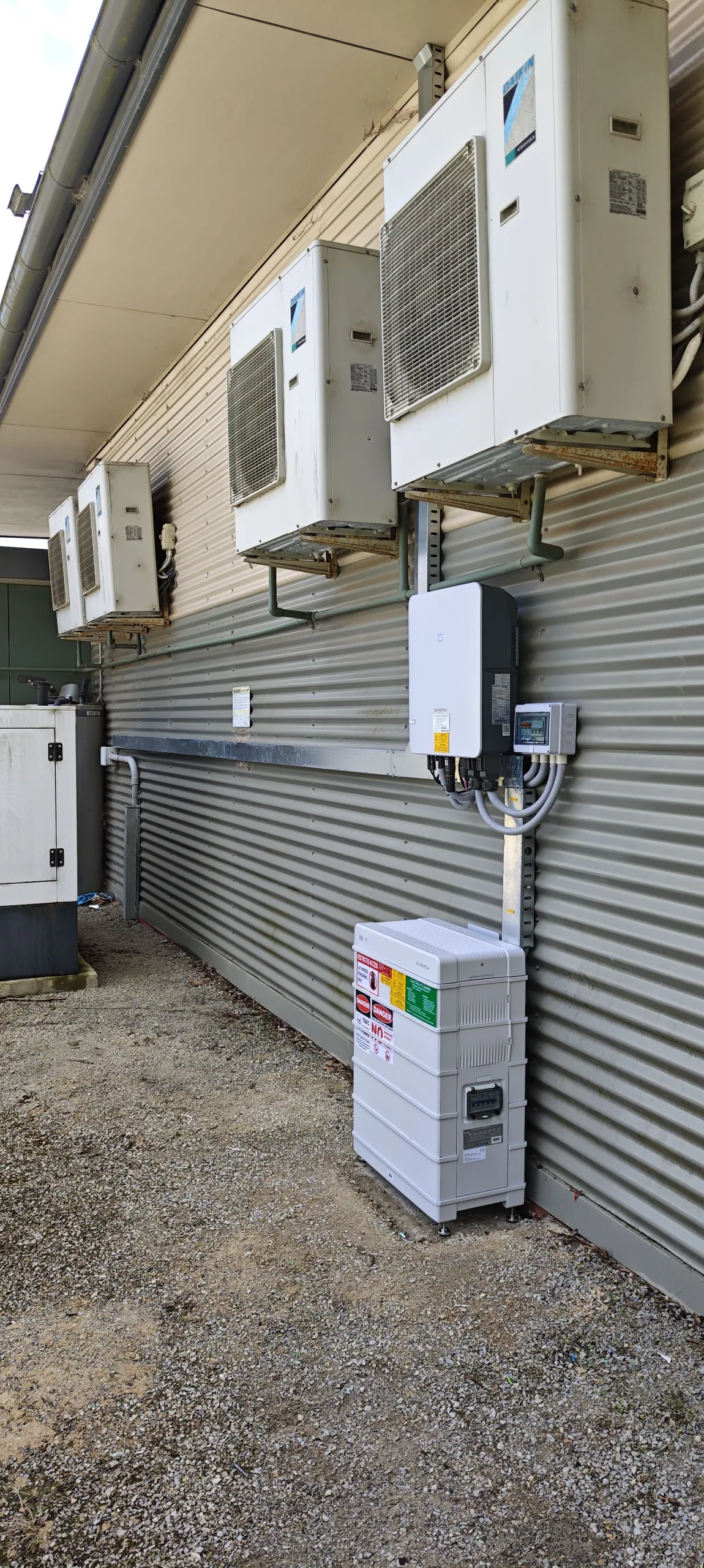

The community facility at Clonbinane Hall received a modern energy upgrade with the installation of a 16kWh Sungrow battery system and replacement of the existing GoodWe inverter. This standalone battery addition required structured, code-compliant cable management across multiple system types: AC, DC, communication and monitoring.
The OptiMount Tray system with divider accessory was used to neatly and safely route all cables in a shared pathway-minimising wall clutter while enhancing protection and compliance.
Benefits of the OptiMount system

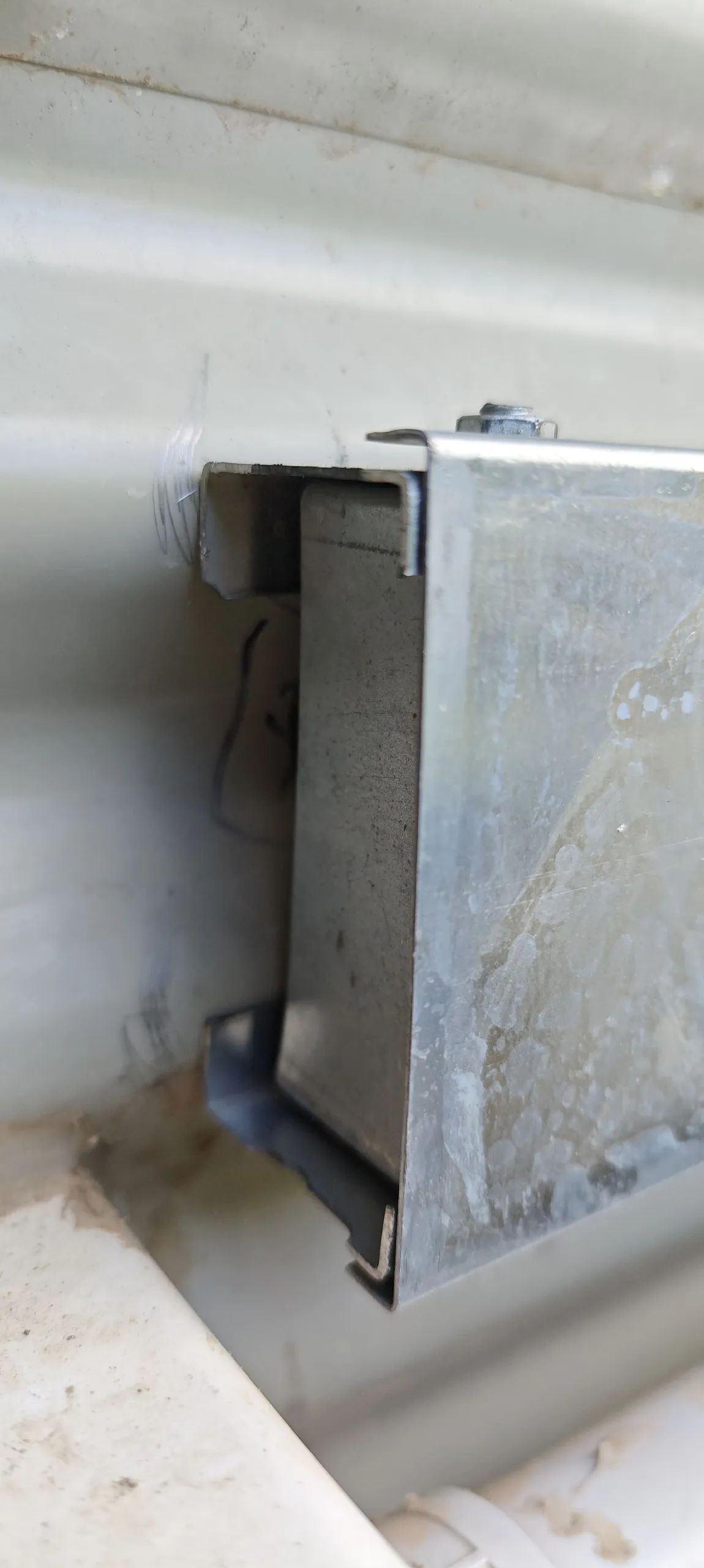

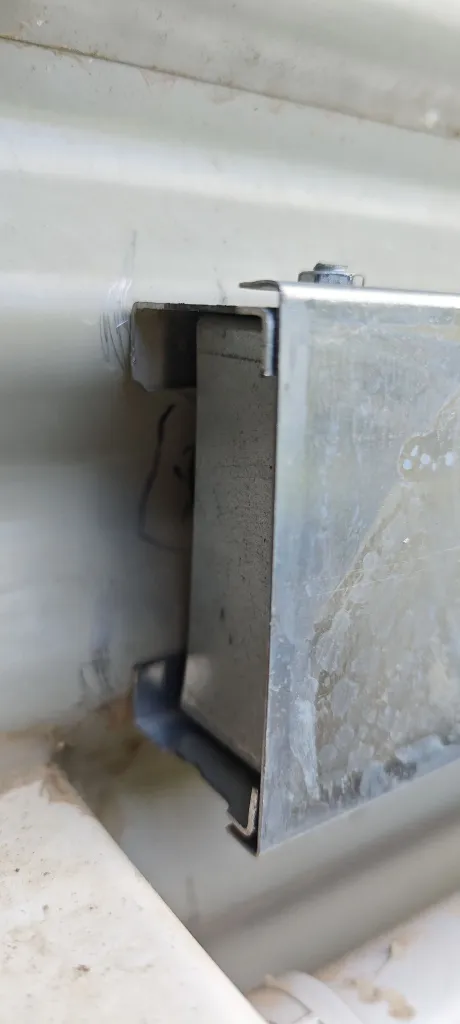

- Enhanced cable protection in outdoor conditions via a fully enclosed tray with peaked lid
- Clear AC/DC separation maintained using the tray divider-aligning with AS/NZS 5033 segregation rules
- ZAM coating for long-term corrosion resistance on external wall mounting
- Fast install: knockout zones and overlapping slots allowed flexible entry and secure mounting
Where OptiMount did the work

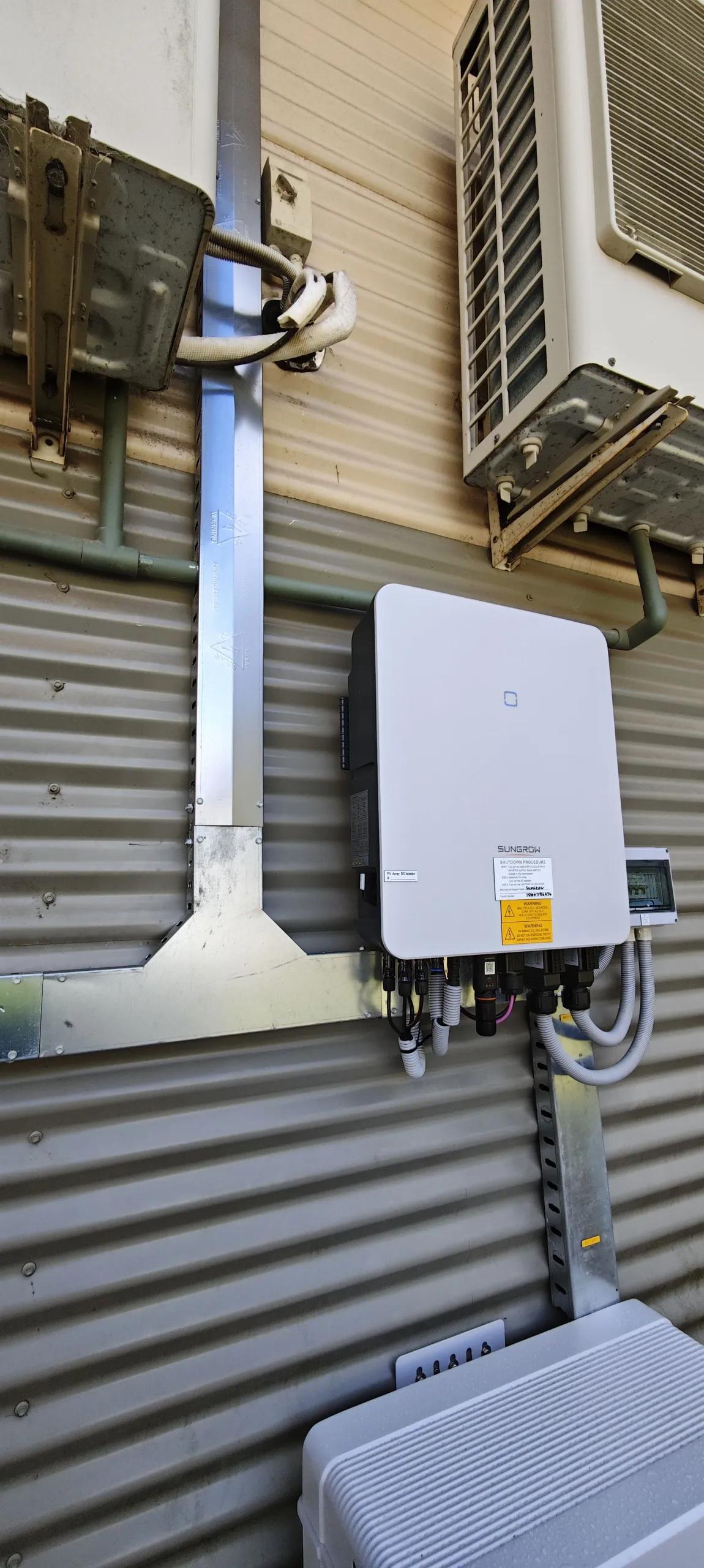

- AC supply and backup wiring from inverter to main switchboard
- DC battery connections with communication
- Communication cabling for inverter to switchboard
- Divider accessory used to segregate AC, DC and data cables in the same tray
On the roof
Project photos
